Description
General

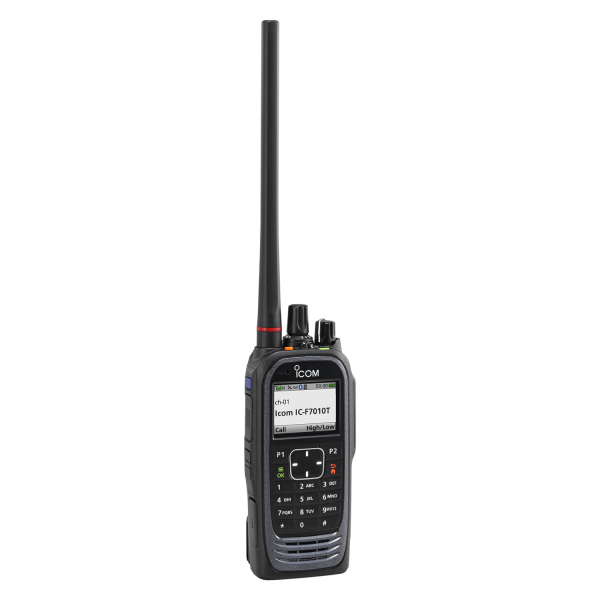

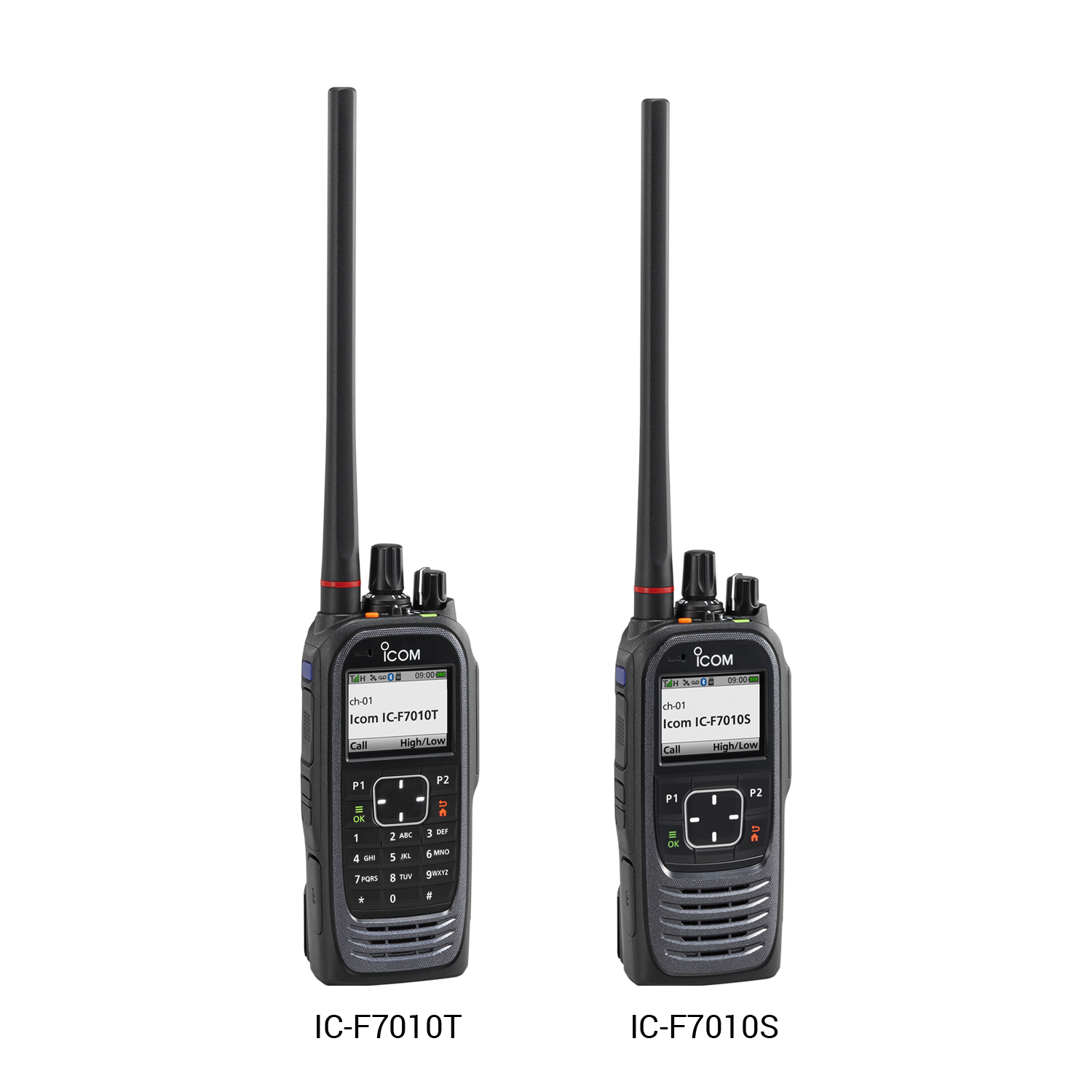

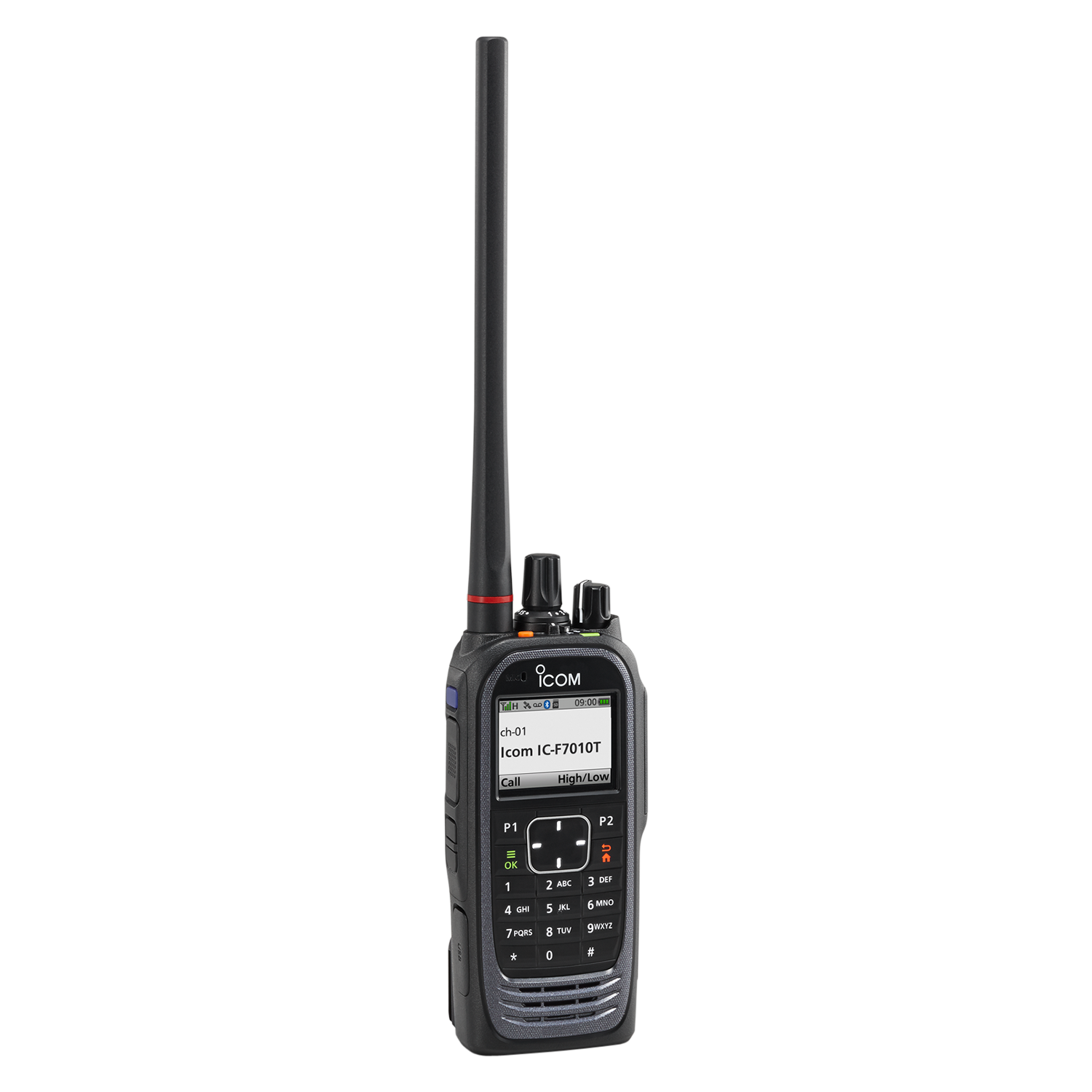

| IC-F7010T/S | IC-F7020T/S | IC-F7040T/S | ||
|---|---|---|---|---|
| Frequency coverage (* Depends on the transceiver version) |
136 ~ 174 MHz | 380 ~ 470, 450 ~ 512 MHz | USA 769 ~ 775 MHz (for RX/TX); 799 ~ 805 MHz (for TX only), 851 ~ 869 MHz (for RX/TX); 806 ~ 824 MHz (for TX only) |
|
| EXP 764 ~ 776 MHz (for RX/TX); 794 ~ 806 MHz (for TX only), 851 ~ 870 MHz (for RX/TX); 806 ~ 825 MHz (for TX only) |
||||
| Number of channels | 1024 channels /128 zones
2000 channels (with ISL-P25CHEX) |
|||
| Type of emission (* Depends on the transceiver version) |
16K0F3E*, 11K0F3E, 8K50F3E, 8K10F1E/F1D, 8K10F1W | 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 8K10F1E/F1D, 8K10F1W | ||
| Power supply requirement | 7.5 V DC nominal | |||
| Current drain (approximate) | Tx | 1.5 A | 1.8 A | 1.6 A |
| Rx | 560 mA /150 mA (Max. audio (internal SP)/Standby) |
620 mA /250 mA (Max. audio (internal SP)/Standby) |
||
| Antenna impedance | 50 Ω | |||
| Operating temperature range | −30 °C to +60 °C; −22 °F to +140 °F (Radio specifications) |
|||
| Dimensions (W × H × D, Projections not included) |
53.6 × 123.5 × 38.2 mm; 2.1 × 4.9 × 1.5 in (With BP-284) |
|||
| Weight (approximate) | 355 g; 12.5 oz (incl. BP-284, MB-133, FA-S81VS) |
355 g; 12.5 oz (incl. BP-284, MB-133, FA-S81US) |
345 g, 12.2 oz (incl. BP-284, MB-133, FA-S100U) |
|
* ISL-P25W required for 25 kHz bandwidth operation for USA versions.
Transmitter
| IC-F7010T/S | IC-F7020T/S | IC-F7040T/S | |
|---|---|---|---|
| Output power | 5 W, 2 W, 1 W | 3 W, 2 W, 1 W | |
| Maximum frequency deviation | ±5.0 kHz (@25 kHz), ±2.5 kHz (@12.5 kHz) | ±5.0 kHz (@25 kHz), ±4.0 kHz (@20 kHz), ±2.5 kHz (@12.5 kHz) |
|
| Frequency stability | ±1.0 ppm | ||
| Spurious emissions | 80 dB typ. | 70 dB min. | |
| FM hum and noise | 55 dB typ. | ||
| Audio harmonic distortion | 0.5% typ. (AF 1 kHz, 40% deviation) | 1.5% typ. (AF 1kHz, 40% deviation) | |
| FSK error | 1% typ. (C4FM), 3% typ. (H-CPM) | 1% typical | |
Receiver
| IC-F7010T/S | IC-F7020T/S | IC-F7040T/S | ||
|---|---|---|---|---|
| Sensitivity | Analog (12 dB SINAD) | 0.22 μV typ. (@25/12.5 kHz) |
0.23 μV typ. (@25/12.5 kHz) |
0.25 μV typ. (@25/20/12.5 kHz) |
| Digital (5% BER) | 0.22 μV typ. (@C4FM, H-DQPSK) |
0.23 μV typ. (@C4FM, H-DQPSK) |
0.25 μV typ. (@C4FM, H-DQPSK) |
|
| Adjacent channel selectivity | Analog (wide / middle / Narrow) | 80/57 dB typ. (@25/12.5 kHz, TIA-603B), 80/76 dB typ. (@25/12.5 kHz, TIA-603) |
75/55 dB typ. (@25/12.5 kHz, TIA-603B), 75/72 dB typ. (@25/12.5 kHz, TIA-603) |
75/75/53 dB typ. (@25/20/12.5 kHz, TIA-603B) , 75/75/72 dB typ. (@25/20/12.5 kHz, TIA-603) |
| Digital | 63 dB typ. (@C4FM, H-DQPSK, TIA-102) |
60 dB typ. (@C4FM, H-DQPSK, TIA-102) |
60 dB typ. (@C4FM, H-DQPSK, TIA-102) |
|
| Spurious response rejection | 80 dB typ. | 76 dB typ. | 70 dB typ. | |
| Intermodulation rejection | Analog | 75 dB typ. | 74 dB typ. | 70 dB typ. |
| Digital | 75 dB typ. | 74 dB typ. | 70 dB typ. | |
| Audio output power | Internal SP | 1300 mW typ. (at 5% distortion with 8 Ω load) | ||
| External SP | 1000 mW typ. (at 5% distortion with 8 Ω load) | |||
